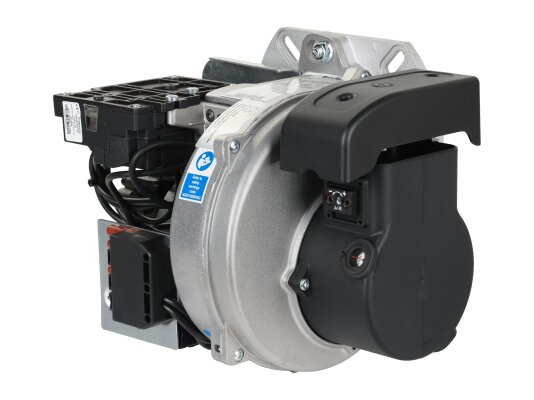

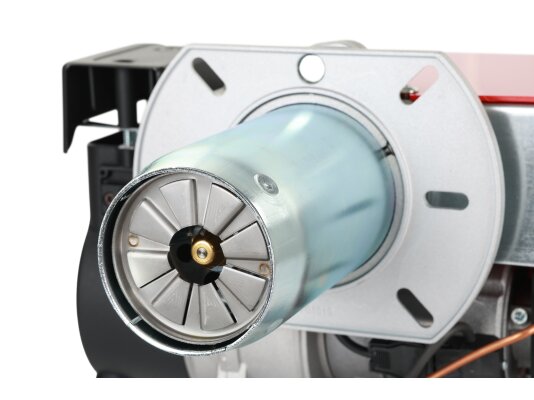

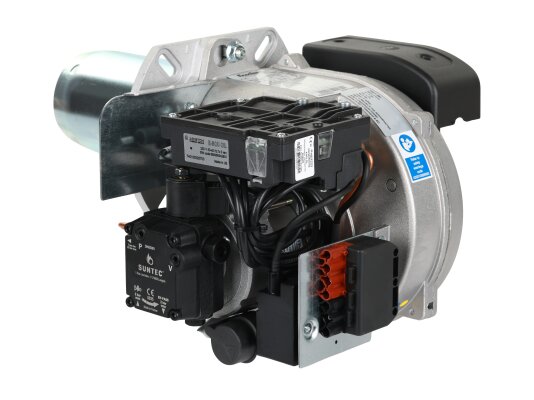

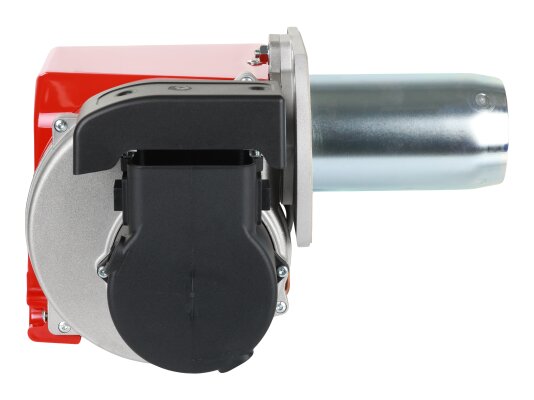

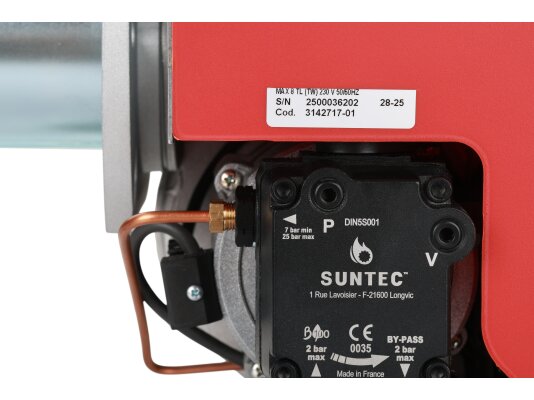

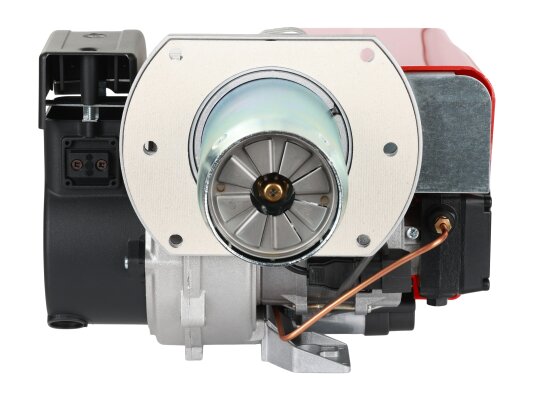

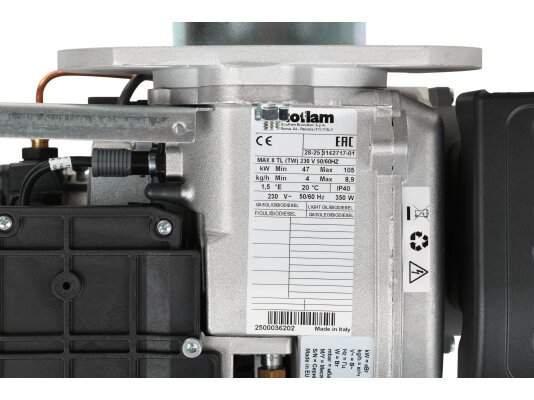

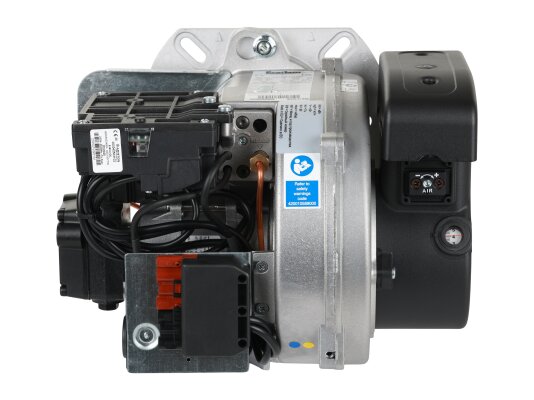

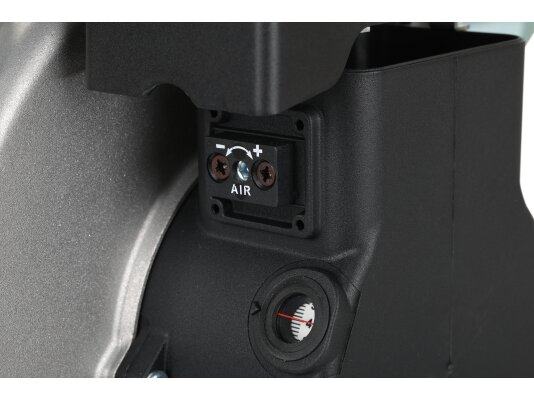

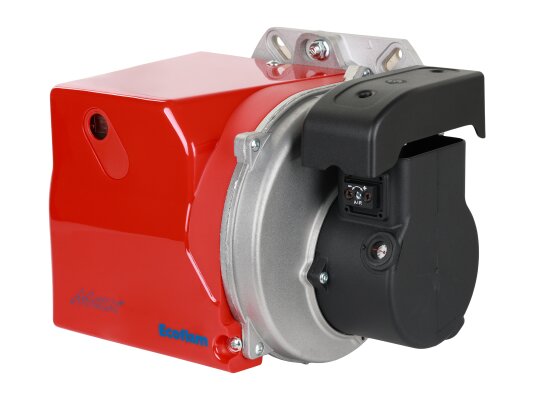

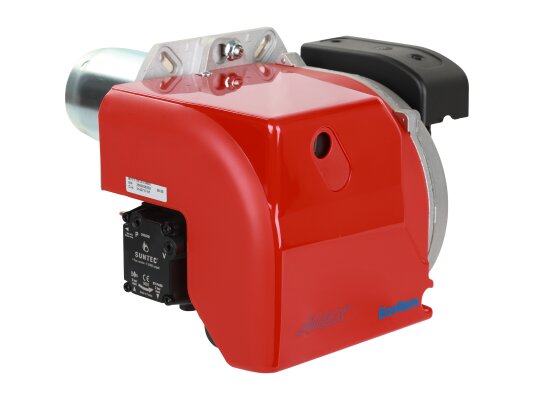

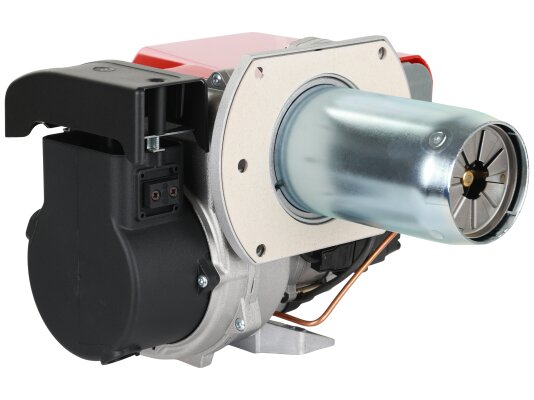

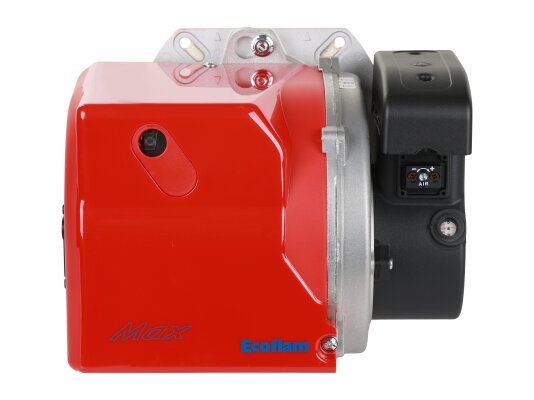

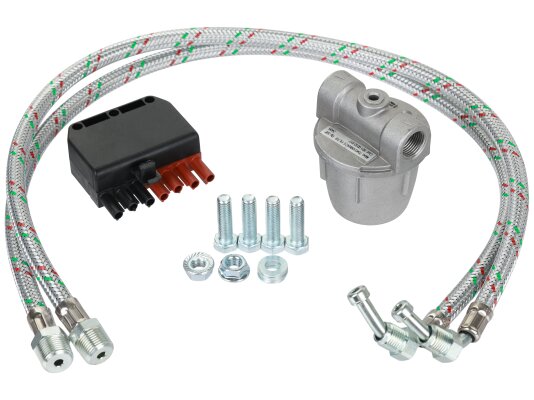

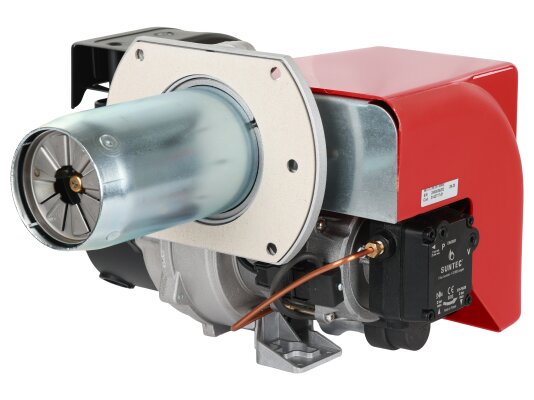

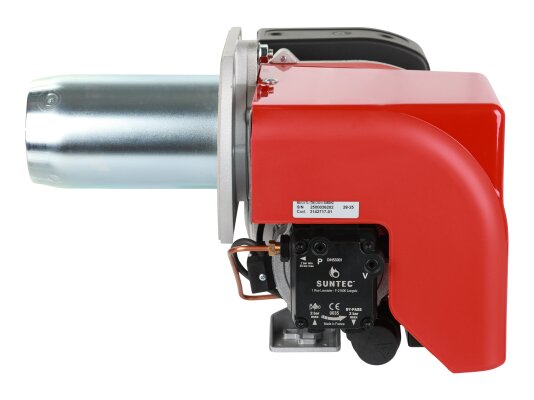

Ecoflam MAX 8 TW TL diesel burner with filter included

Ecoflam3142717-01

ETB 162,000

Archive image

Ecoflam MAX 8 TW TL diesel burner, art: 3142717-01.

About product

Go to description

Fuel type dieselFlame pipe diameter 89 mmCounterpressure from 0 to 3.4 mbarThe length of the flame pipe 145 mmFuel consumption 4 - 8.9 kg/hOperating temperature from -10 to 60 °C

Burners for heating boilers

Characteristics

Manufacturer Part Number: 3142717-01Fuel type: dieselFlame pipe diameter: 89 mmCounterpressure: from 0 to 3.4 mbarThe length of the flame pipe: 145 mmFuel consumption: 4 - 8.9 kg/hOperating temperature: from -10 to 60 °CNoise level: 65 dBElectrical power consumption: 350 WElectric motor: 90 WBurner power: from 47 to 105 kWFlame pipe type: extendedBurner type: one-stageDegree of protection: IP40Included accessories: with a combustion headVoltage: 220 V

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

Analogues

ETB 162,000
Ecoflam MAX 8 TL HT CV TW diesel burner with filter included
ETB 157,000
Ecoflam MAX 8 TC HT CV TW diesel burner with filter included
ETB 157,000
Ecoflam MAX 8 TW TC diesel burner with filter included
ETB 153,000
Ecoflam MAX 8 TW TC diesel burner
ETB 153,000
Ecoflam MAX 8 TC HT CV SP TW diesel burner
ETB 159,000
Ecoflam MAX 8 TW TL diesel burner
ETB 158,000
Ecoflam MAX 8 TL HT CV TW diesel burner
Ecoflam MAX 8 TC diesel burner

Accessories and spare parts

ETB 13,700
Ecoflam QRB1A-A050B70A flame sensor
ETB 62,500
Ecoflam E-BCU OIL Combustion Manager
ETB 5,100
Ecoflam 7P connector, 65322070
ETB 50,500
Simel CD 42/2078-32 electric motor
ETB 5,000
Ecoflam 76mm Ignition Electrode Block, 65320924
ETB 4,100
Ecoflam 350mm Ignition Cable, 65325253
ETB 6,500
Ecoflam fan impeller Ø120 x 50 mm, 65321770
ETB 1,025
Ecoflam 65320621 Air Intake Guide
ETB 4,475
Copper fuel pipe Ecoflam G1/8" - G1/8" 65321500
ETB 6,000
Ecoflam Liquid Fuel Hose G 1/4" - G 3/8", 65323216
ETB 6,000
Ecoflam Silicone O-Ring Ø100 x 2 mm, 65321061
ETB 12,900
Elco MZ 770 S flame sensor
ETB 37,500
Elco AS V 47 A 1636 6P 0700 burner pump
ETB 10,900
Ecoflam 70451006AG Liquid Fuel Filter
ETB 21,600
Elco Ignition Transformer, 65323257
ETB 24,800
Elco 65323744 Solenoid Valve
ETB 3,125
Ecoflam 7P male connector, 65322069
ETB 9,600
Ecoflam burner cover, 65325254
ETB 9,600
Elco FTEB1 F MM 340 J1 flame sensor
ETB 27,500
Suntec AS V 47 A 1636 6P 0700 burner pump
ETB 16,300
Ecoflam Heat Exchanger Tube Ø90 x 168 mm 65320299
ETB 35,000
Ecoflam 65320130 Air Intake Box

This product is from the collections

Burners for heating boilers

Ecoflam

Brand

Italy — home of the brand

Packaging information

Weight, kg:: 9.5
Width, cm:: 23.8
Height, cm:: 24.9
Length, cm:: 34.9
