Elco VL 4.460 DP diesel burner

Elco3833972

ETB 591,000

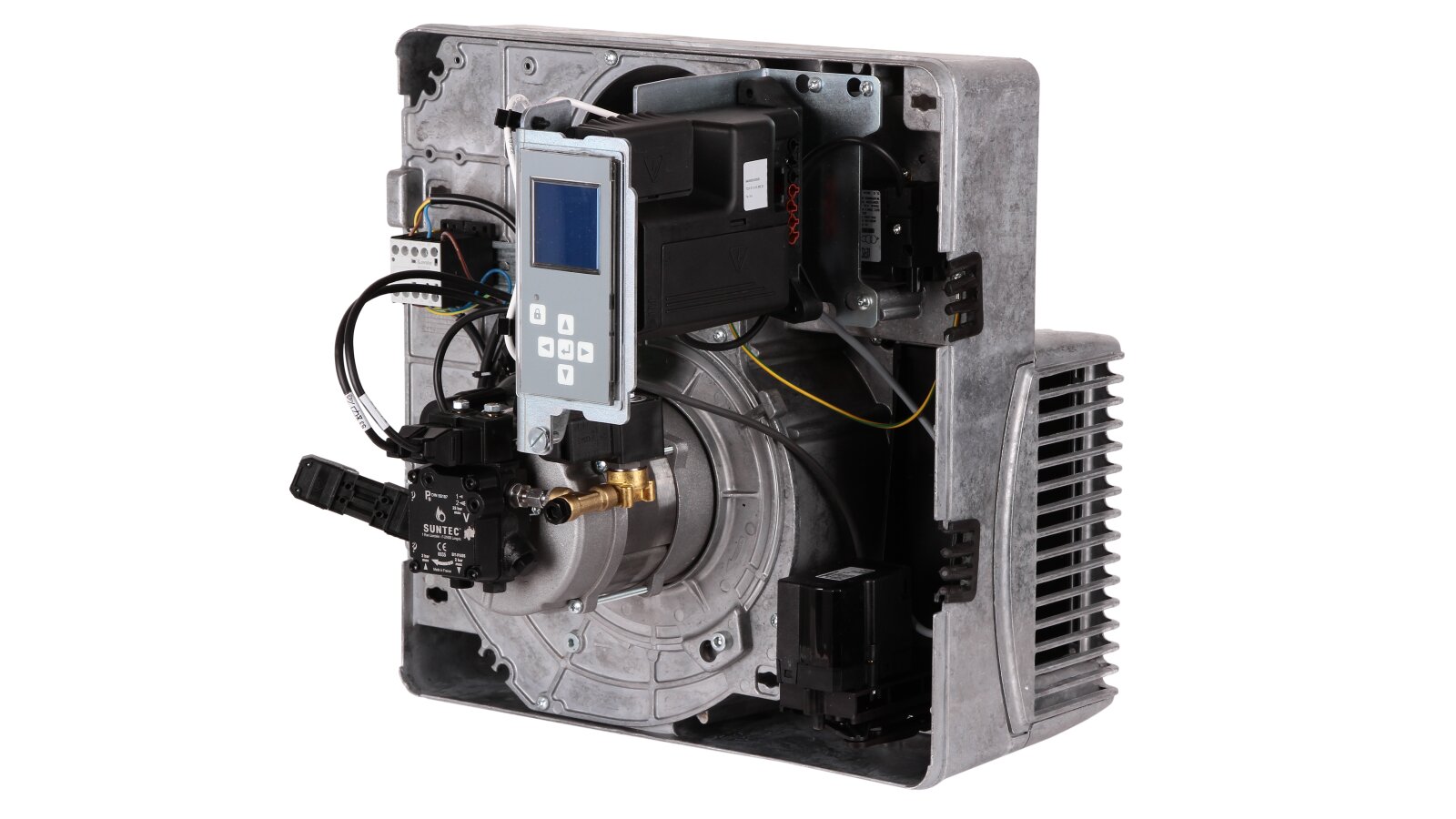

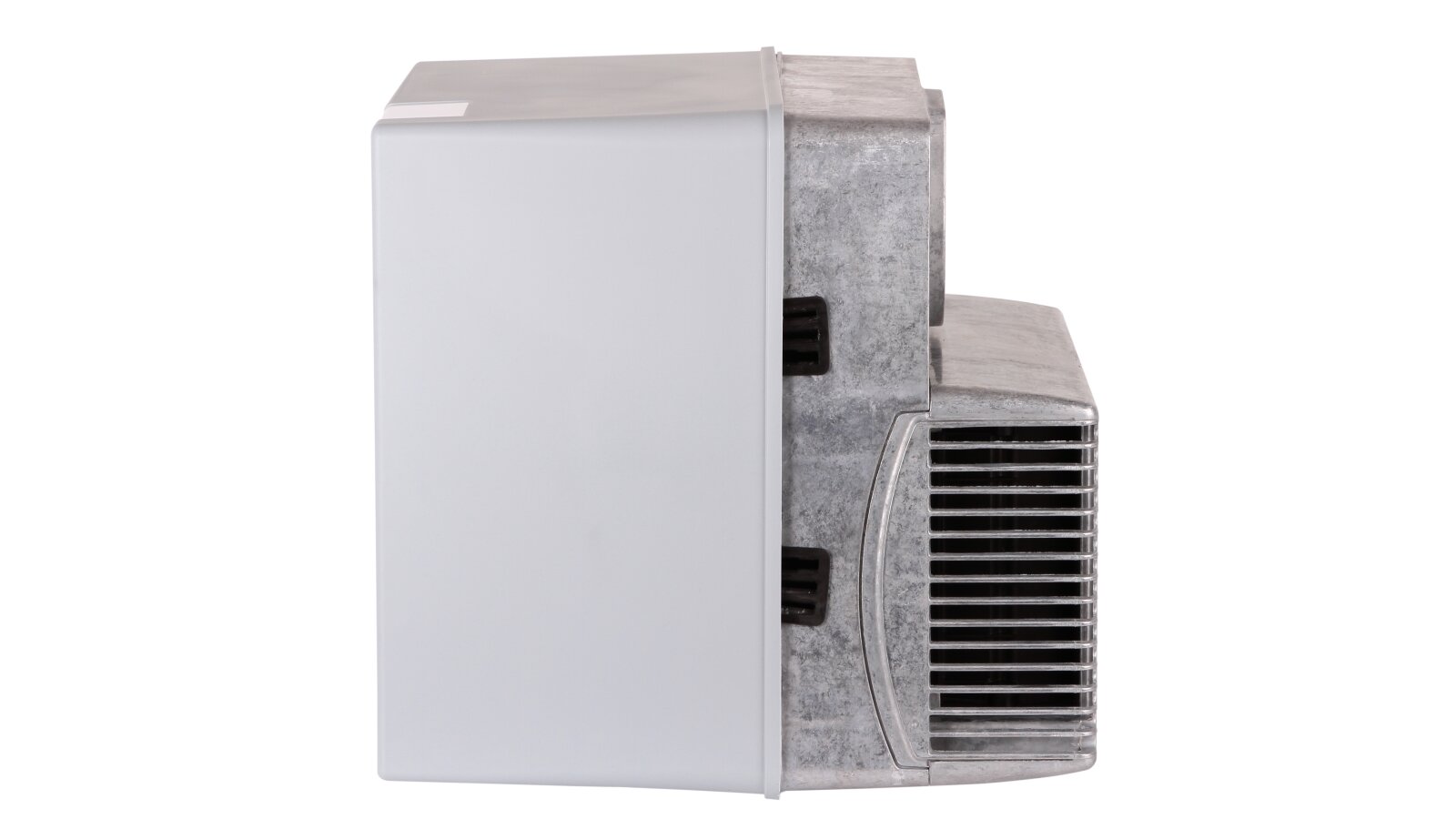

Elco VL 4.460 DP diesel burner, art: 3833972.

About product

Go to description

Fuel type dieselElectrical protection class IP 41Operating temperature from -10 to 60 °CCounterpressure from 0 to 5 mbarFuel consumption 15.2 - 38.8 kg/hNoise level 70 dB

Burners for heating boilers

Characteristics

Manufacturer Part Number: 3833972Fuel type: dieselElectrical protection class: IP 41Operating temperature: from -10 to 60 °CCounterpressure: from 0 to 5 mbarFuel consumption: 15.2 - 38.8 kg/hNoise level: 70 dBElectrical power consumption: 545 WElectric motor: 420 WBurner power: from 180 to 460 kWIncluded accessories: without combustion headVoltage: 220 VBurner type: pneumatically adjustable

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

Accessories and spare parts

ETB 68,500
Elco TCH 311.00 Combustion Manager
ETB 57,500
Elco 2811 Liquid Crystal Display - 1
ETB 10,300
Ecoflam 2nd stage cable 160 mm, 65300531
ETB 64,000
Berger Lahr / Schneider Electric STE4.5 B0.37/6 -R servo drive
ETB 99,000
Elco 41/T80-2M-420-32, 420W motor
ETB 13,700
Suntec SL1V2807 Liquid Fuel Electromagnetic Valve
ETB 21,800
Elco fan impeller Ø180 x 75 mm, 13011096
ETB 5,600
Elco 119/114x60 78° Intake Air Guide, 13017364
ETB 18,300
Ecoflam Soundproofing 259 x 269 mm 65300808
ETB 20,900
Elco G 1/4" - Rp 3/8" Liquid Fuel Hose, 13004833
ETB 31,000

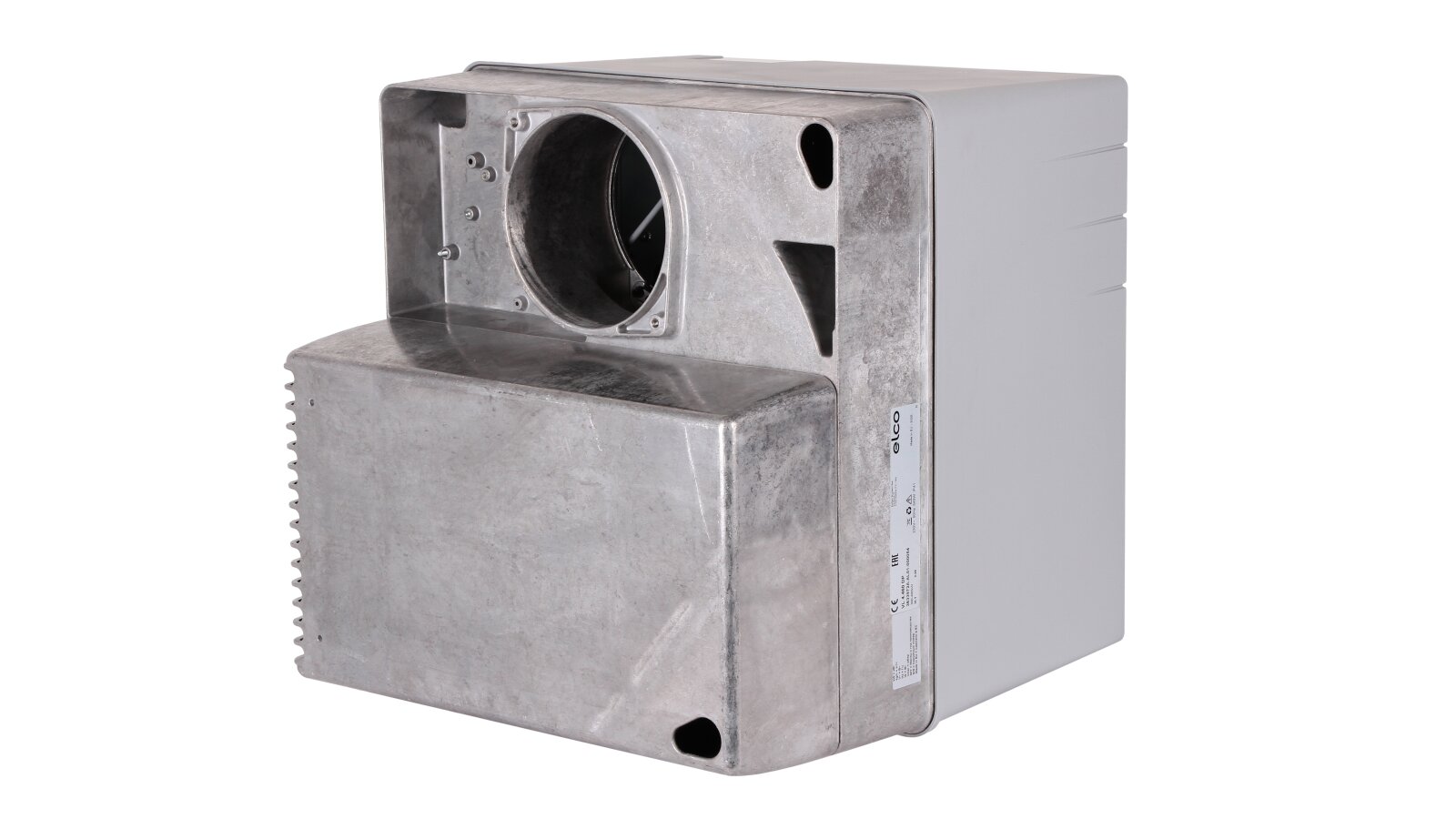

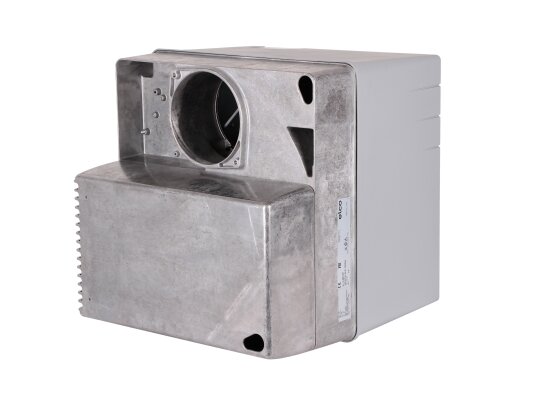

Elco V4 Burner Casing, including 65300812
ETB 11,100
Elco M13 Electromagnetic Coil
ETB 13,700
Elco QRB1A-A048B70B flame sensor, 65326516
ETB 20,900
Elco EBI4 MC 052F4057 ignition transformer
ETB 22,600
Elco 07 - 220-240VAC T80 Electromagnetic coil
ETB 4,925
Elco cable gland 54X36X8, 13016845
ETB 12,600
Elco flame sensor 610 mm, 65328029
ETB 4,750
Ecoflam Shroud Fixing Screw M5 x 15 mm, 65300519
ETB 6,500
Elco 13010470 Pump Repair Kit
ETB 5,200
Elco 420mm Power Cable 13011090
ETB 33,000
Ecoflam 65326874 Air Intake Box
ETB 58,000
Elco AT3 55 C 9550 4P 0700 burner pump

This product is from the collections

Burners for heating boilers

Elco

Brand

Italy — home of the brand

Italy — country of origin

Packaging information

Weight, kg:: 40
Width, cm:: 46.5
Height, cm:: 47.5
Length, cm:: 49.1
