Description

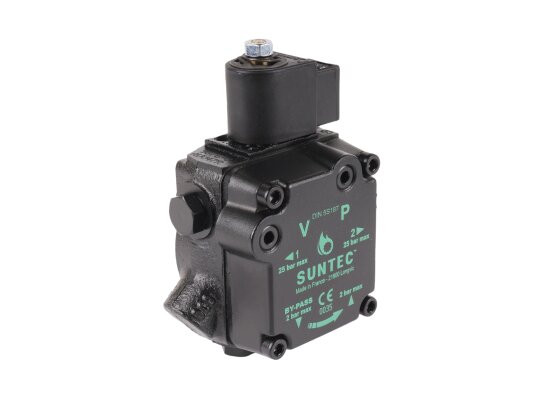

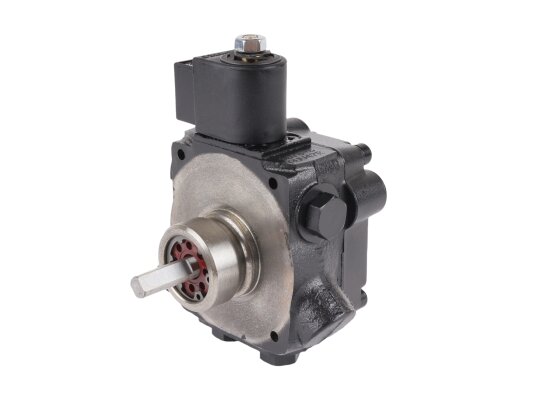

The Suntec AU V 47 R 9876 6P 0700 burner pump is suitable for universal applications. It supplies diesel fuel, kerosene, and a B10 biodiesel blend for combustion. It can be used as a replacement for AS47 and AL35 models. The pump is equipped with a solenoid shut-off valve and two nozzle outlets.
Features and important parameters:
- for liquid fuel burners with single-stage power regulation;
- built-in filter, filtration capacity of 150 μm;
- viscosity of the pumped fuel 1-12 cSt;
- series with solenoid valve and two nozzle outlets;
- pressure adjustment range 4-25 bar, default – 9 bar;
- permissible fuel temperature inside the pump – 0...+60 °C;
- sleeve mounting, ∅ 32 mm;
- dust and moisture protection level IP 54 according to EN6052;
- wear-resistant design, reliable gears;
- interference fit of the gear transmission;
- ¼ inch NPTF thread for connecting the suction and return pipes;
- standard ports for measuring pressure and vacuum pressure;
- automatic release of excess air in two-pipe systems;
- input/output pressure – up to 2 bar.
The Suntec AU burner pump is factory assembled for installation in a two-pipe system. A bypass plug is installed in the return drain hole. When using a single-pipe layout, the return channel must be sealed by installing a steel plug with a washer.
Characteristics
Installing the bypass plug: P: bypass plug installed in return line for two-pipe systemPump series: AU: replaces most AS 47 and AL 35 models. It has an integrated solenoid valve (type AL) withPressure gauge port: ⅛ inchReturn pressure: 2 barTorque: 0.1 N·mMaximum rotation speed: 3,600 rpmMaximum pressure of the solenoid valve: 25 barNominal rotation speed: 2,850 rpmSolenoid valve consumption: 9 WPerformance at 11 bar and 1.8 cSt viscosity for Kerosene: 24 l/hPerformance at 11 bar pressure and 5 cSt viscosity: 44 l/hStrainer: Open area: 6 cm²Strainer: Opening size: 150 µmVacuum gauge port: ⅛ inchOperating viscosity: from 1 to 12 mm²/sValve function: pressure regulatingModel type: 1 stage with electromagnetic valveBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withOil temperature: from 0 to 60 °C in the pump2nd stage performance at 11 bar and 1.8 cSt viscosity for Kerosene: 24 l/hPerformance for stage 2 at 11 bar and 5 cSt viscosity: 44 l/hShaft design: one cavityFactory pressure setting: 9 barSolenoid valve voltage: 220-240V~, 50-60HzNozzle pressure range: from 4 to 25 barShaft diameter: 8 mmInlet pressure: 2 barSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchInstallation method: sleeve ⌀32 mmDegree of protection: IP54Direction of rotation (looking at the drive shaft): R: вращение по часовой стрелкеType of pumped liquid: diesel, kerosene, biodiesel fuel blend B10
